Basic Specifications
Driving Type
Hydraulic Type
Position of Computer Room
Without Computer Room
Deceleration Device
With Deceleration Device
Transport Package
Export Wooden Box Packaging
Production Capacity
10000sets Per Month
Product Overview

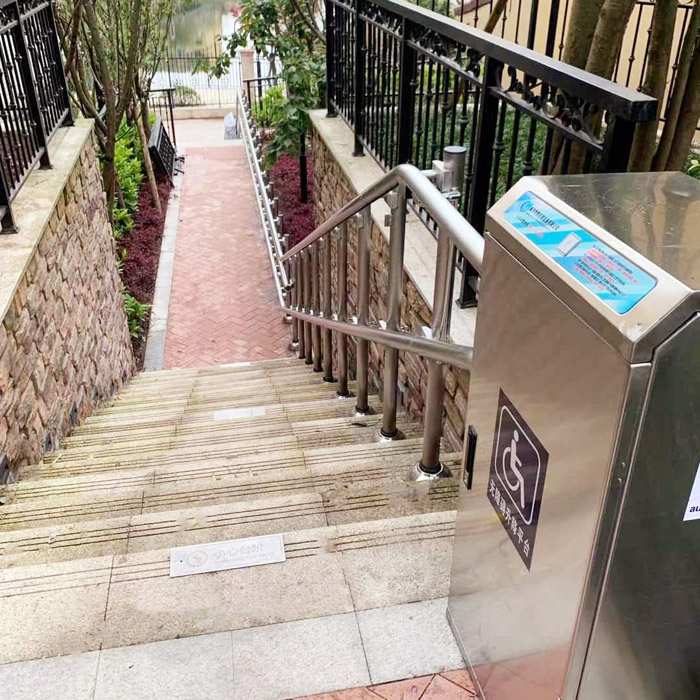

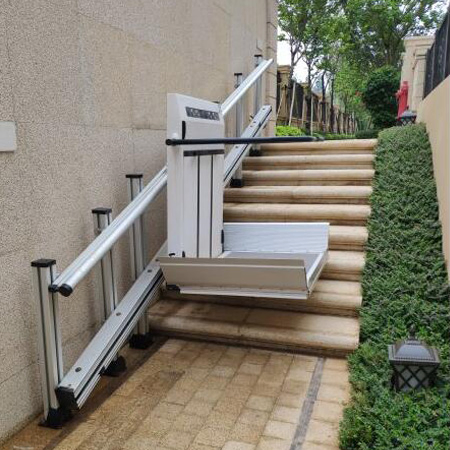

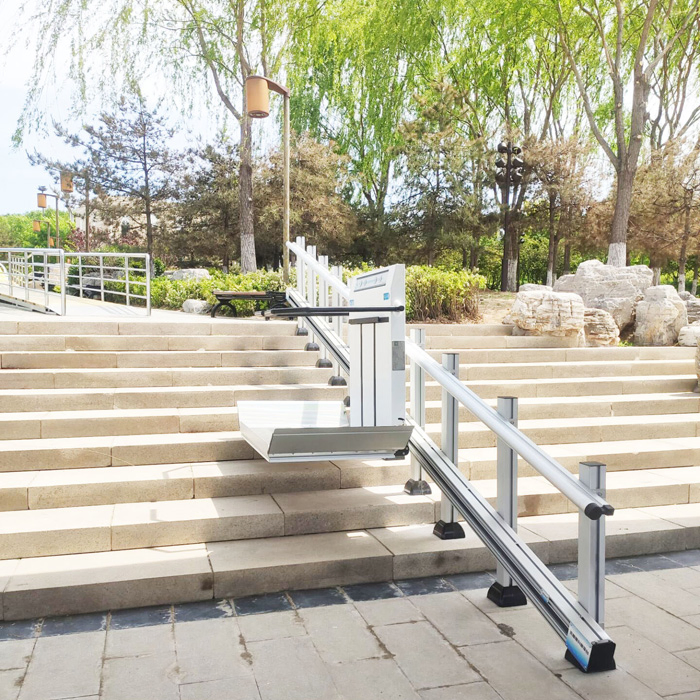

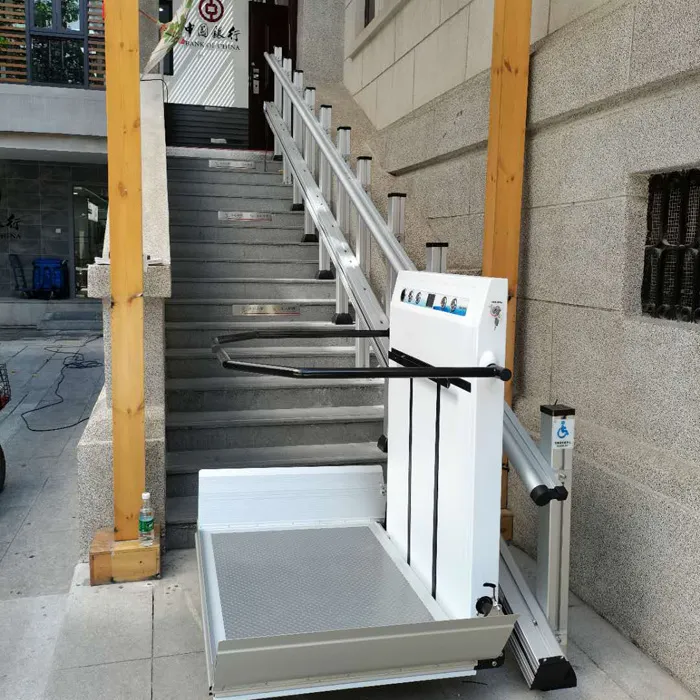

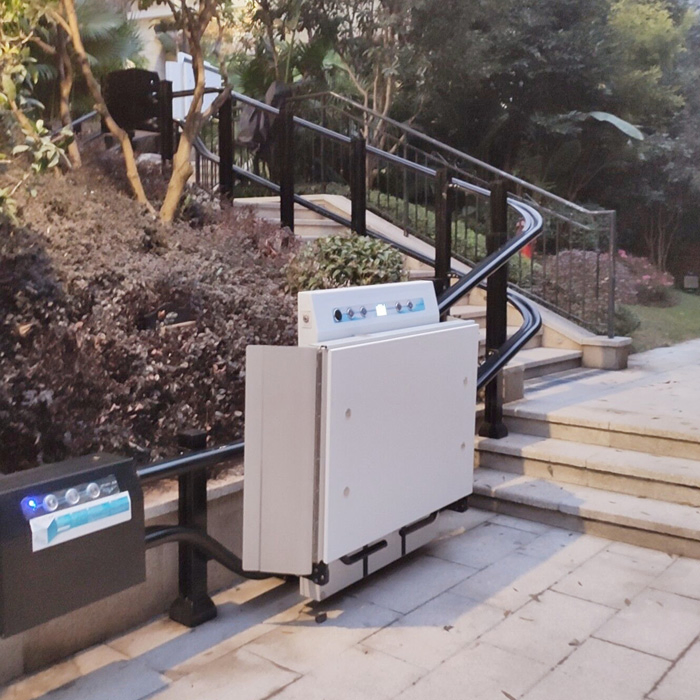

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.
These lifts can carry a passenger with a wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for environments where an elevator or vertical platform lift cannot be easily accommodated.
Platform Technical Parameters
| Parameter Item |
Specification Details |
| Platform load |
250kg |
Platform weight |
≈150 kg |
| Operating surface size |
680mm*60mm (L*H) |
Platform manned size |
1118mm*800mm |
| Side flap size |
885mm*260mm(L*W) |
Side flap tiltable angle |
-30°~ +60° |
| Guardrail height |
945mm |
Button height |
1088mm |
| Device thickness |
450mm±3mm |
Folding Thickness |
323mm±1mm |
| Internal voltage |
Up to DC 25.2V |
Safe voltage response |
<0.2S |
Material and Craftsmanship
| Platform shell |
White spray + matt film |
Platform pedal |
Aluminum Alloy Profile Sandblasting Oxidation |
| Operation panel |
Electroplated acrylic |
Action button |
Stainless steel |
| Side panel seal |
Aluminum alloy |
Side panel rod |
Stainless steel mirror + rubber sheet |
| Automatic guardrail |
Stainless steel wire drawing |
Floor |
Aluminum alloy profiles |
Power System Specifications
| Motor Power |
1 kw |
Speed ratio |
≤80:1 |
| Running speed |
0.01~0.16 m /s |
Power supply |
220v 50hz |
| Drive power |
1 kw |
Control voltage |
DC 24V, 5V |
| Drive voltage |
220V 50HZ |
Emergency stop response |
<0.5s |
Frequently Asked Questions
What is the maximum load capacity of the X-500L lift?
The platform is designed to safely carry a maximum load of 250kg, accommodating most standard wheelchairs and their users.
How much space does the lift take when not in use?

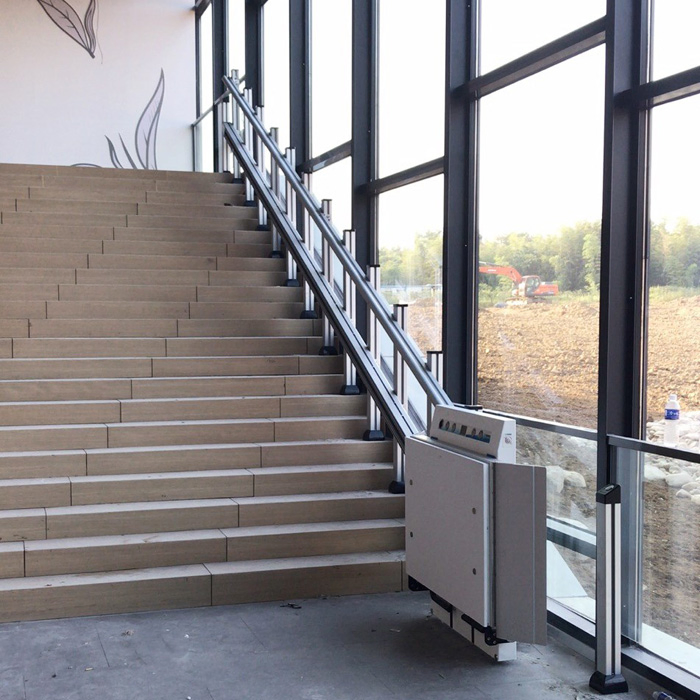

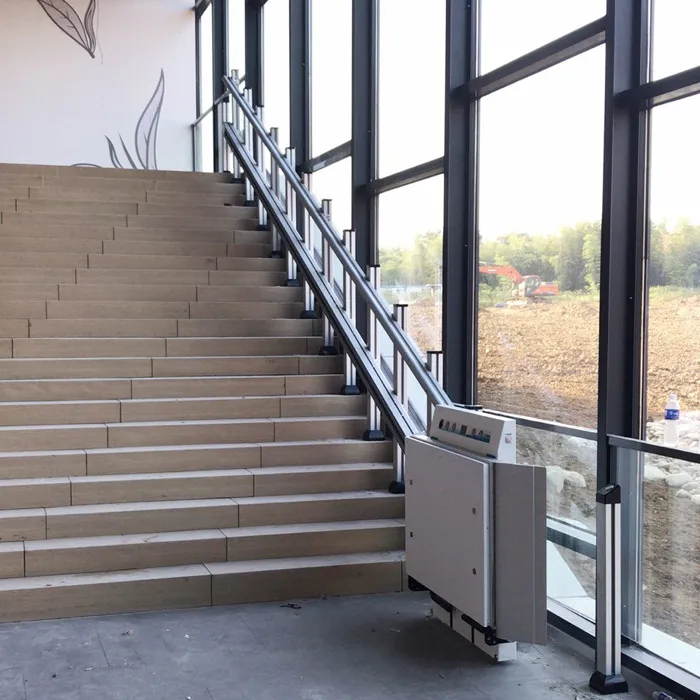

The platform features a space-saving design with a folding thickness of only 323mm±1mm, ensuring the staircase remains accessible to others.
What are the power requirements for installation?
The system operates on a standard 220V 50Hz power supply, with an internal safe control voltage of DC 24V.
Can the lift be customized to match the building's interior?
Yes, various elements including the color, platform size, and control modes can be customized to meet specific architectural and user requirements.
What safety features are integrated into the system?
The lift includes automatic guardrails, a deceleration device, an emergency stop with a response time of less than 0.5s, and safety flaps with tiltable angles.
Is this lift suitable for curved staircases?
The X-500L is designed for inclined travel along staircases. Specific rail systems can be configured for various staircase layouts.
