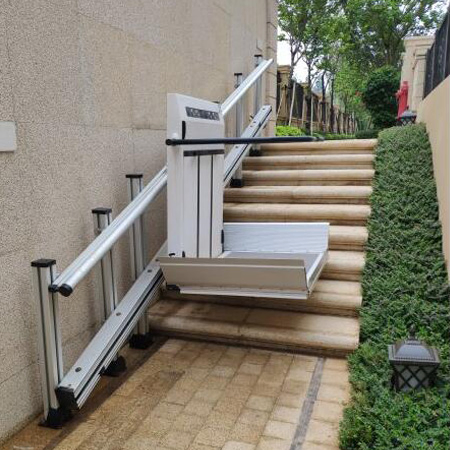

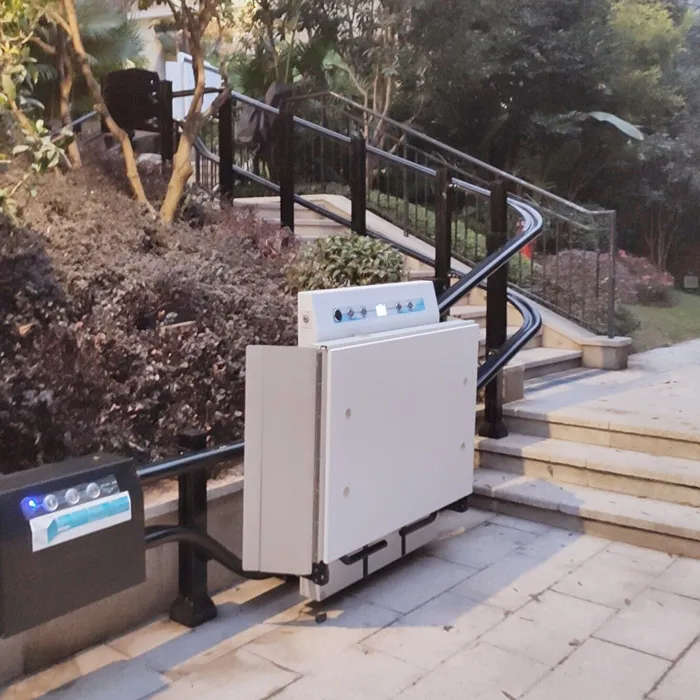

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.
These inclined wheelchair lifts can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.

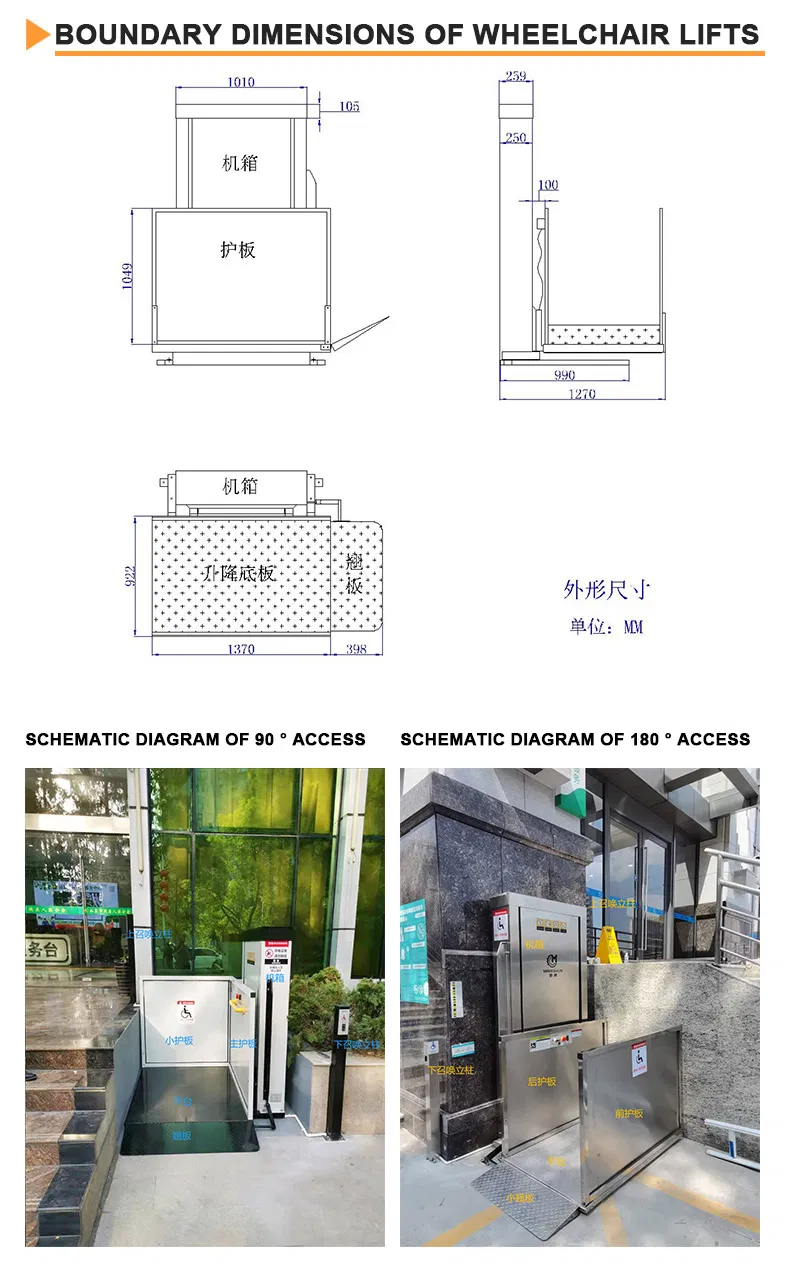

| Standard Platform Dimensions | 1100MM×800MM |
| Loading Capacity | 250KG |
| Speed | 0~7M/MIN (Slow down when arriving) |
| Drive System | 1.5KW-VVVF compact drive system |
| Power Supply | AC 220/380V 50Hz-60Hz, 15A |
| Safety Arm | Fully automatic safety arm (880mm height) |
| Control System | PLC Control with DC24V button switch |
| Safety Device | Overspeed sensor, mechanical brake, and obstacle safety sensors |
| Platform Weight | ≈75 kg | Manned Size | 1100mm*800mm |
| Folded Thickness | <350mm | Folding Speed | <30s |
| Battery Capacity | 7AH*2 (Up to 30 uses without charge) | Internal Voltage | Max DC 29.6V Safe Voltage |
| Shell Material | Stainless Steel | Pedal Material | Aluminum alloy profile |

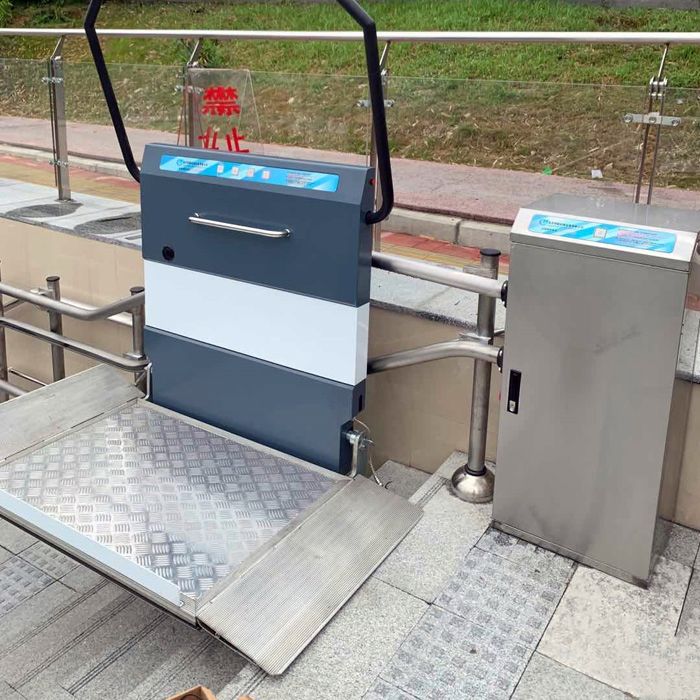

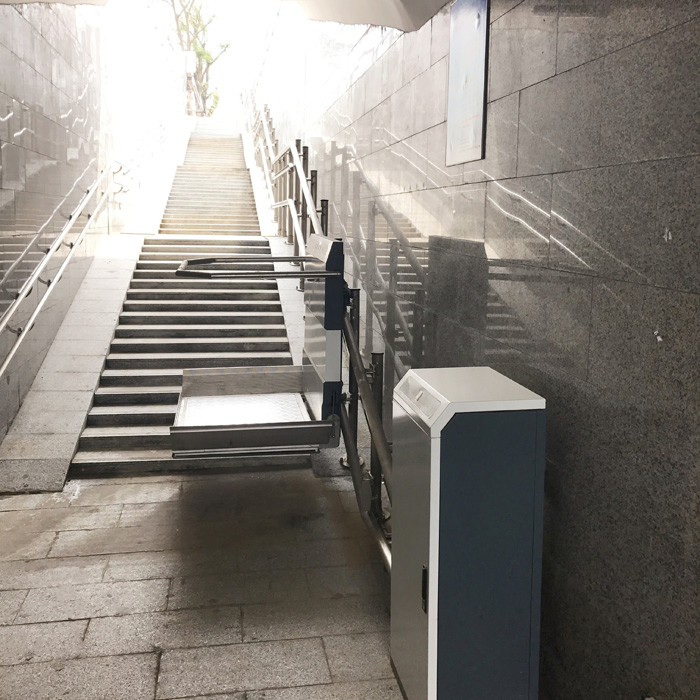

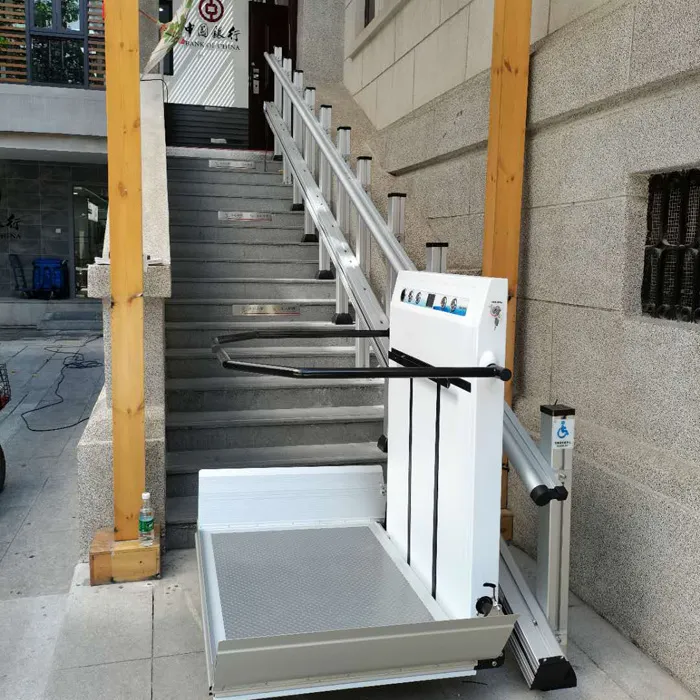

The inclined wheelchair lifting platform is a barrier-free safety device installed in corridors using motor traction to move along a track. It consists of a drive system, guide rail, sheave chain, and mobile platform. It is specifically designed for building corridors to assist wheelchair users or those with difficulty climbing stairs.
