Electric Inclined Wheelchair Lift Platform Wheel Chair Platform Home Stair Lift

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

i

Basic Information

Model NO.

RC001

Driving Type

Gear and Rack Elevator

Capacity

<500kg

Persons

<5

Speed

<1.00m/s

Control Mode

Push-Button Control

Position of Computer Room

Without Computer Room

Elevator Door

Straight Fractional Door

Motor Power

1.5kw

Load Capacity

130 Kg - 250 Kg

Platform Size

1100-800mm

Origin

China

✓

Product Description

In a limited space, the problem of barrier-free vertical access on stairs is solved economically and efficiently with minimal modification to the building. Incline Platform Wheelchair Lift mainly provides the service of up and down stairs for wheelchair users, and has the advantages of safety, reliability, simple operation, stable operation and stable system. The equipment is divided into two driving modes: sprocket drive and rack drive. The customer can select the appropriate drive mode according to the actual situation on site. The safety guards are installed on the three outward faces of the platform to stop the lift when the platform movement is blocked. The platform can be folded up when not in use to reduce the footprint.

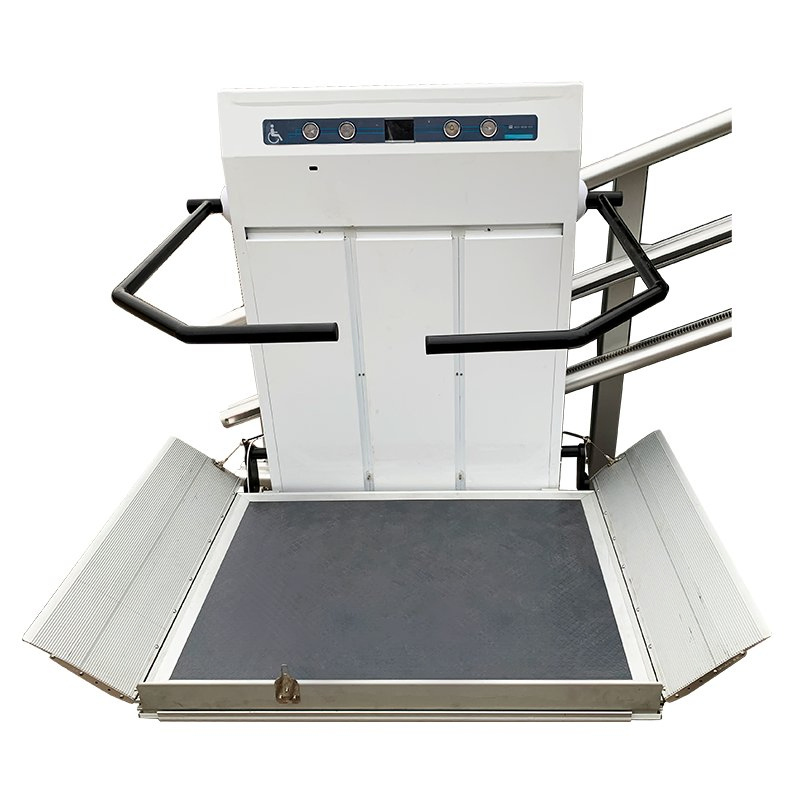

Electric Inclined Wheelchair Lift Platform

⚙

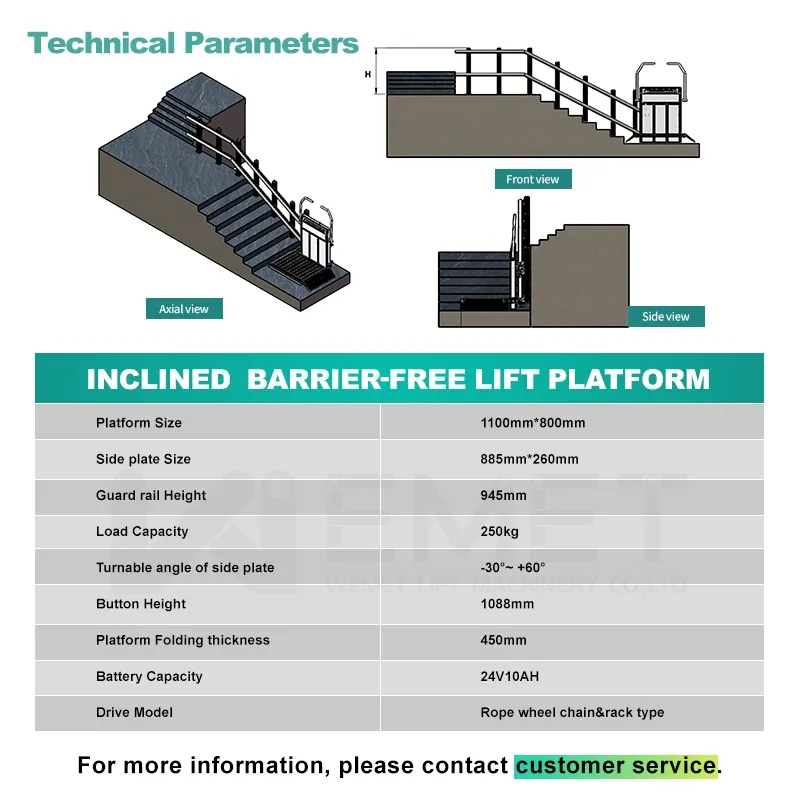

Technical Specification

Load capacity	250kg
Platform size	1100mm(l)*800mm(w)
Control cabinet size	500mm(l)323mm(w)553mm(h)
Safety ramp size	885mm(l)*260mm(w)
Safety ramp working range	30 degrees below zero - 60 degrees
Platform thickness (folded)	323mm
Guardrail height	345mm
Motor power	1.5kw
Power input	220v/50Hz/25AH
Battery capacity	24V10AH

★

Key Features

01

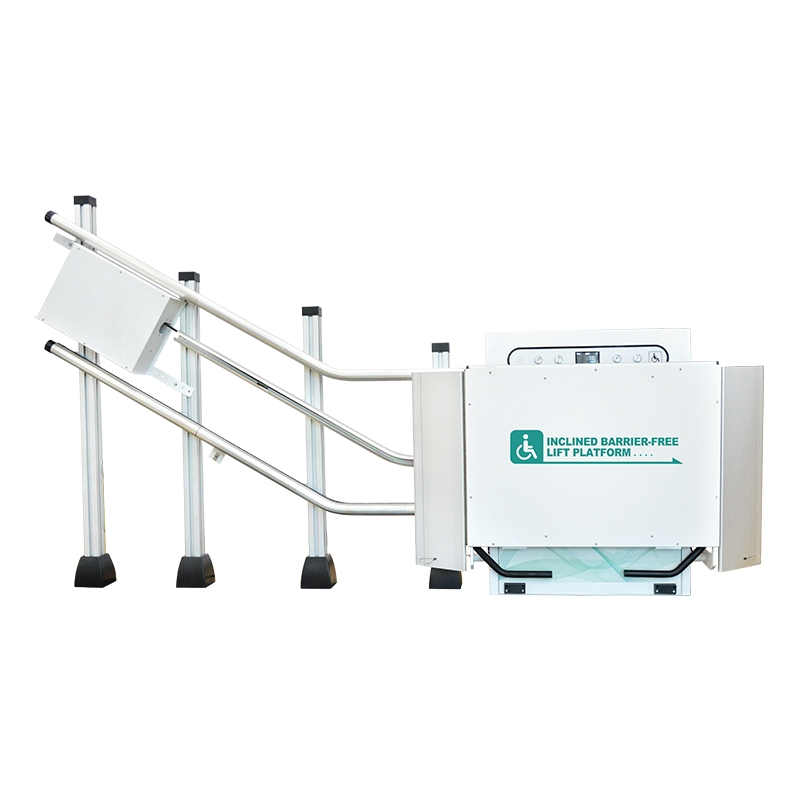

Folding or compact design: Most platforms have wheelchair trays and side panels that fold up when not in use, close to the wall and minimize obstruction to stair access.

02

Anti-collision function: Guardrail can automatically detect displacement and suspend equipment operation to ensure passenger safety.

03

Battery Backup: The battery is supplied with power to ensure that the device can be folded without external power.

04

Emergency Stop: With emergency stop button, the device immediately brakes after pressing the emergency stop button in the running state.

📷

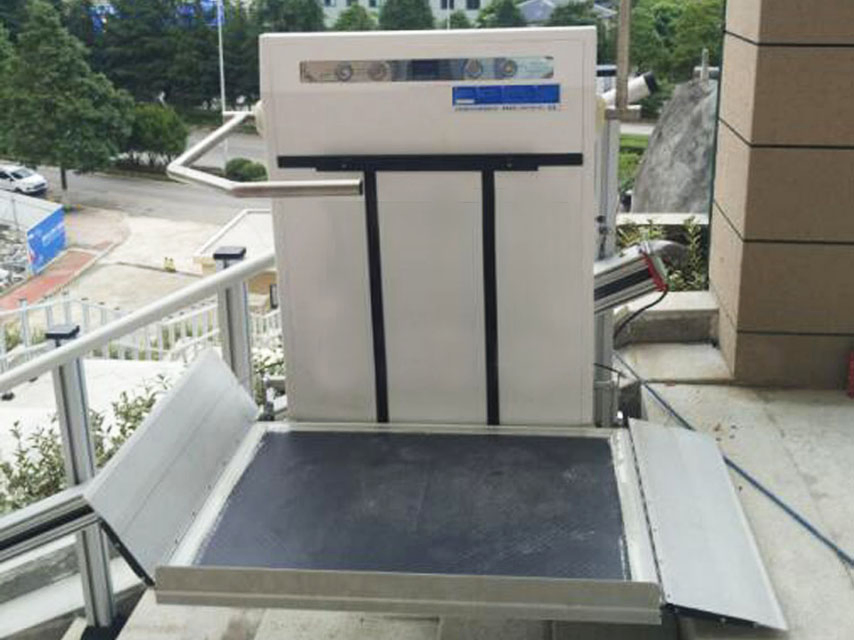

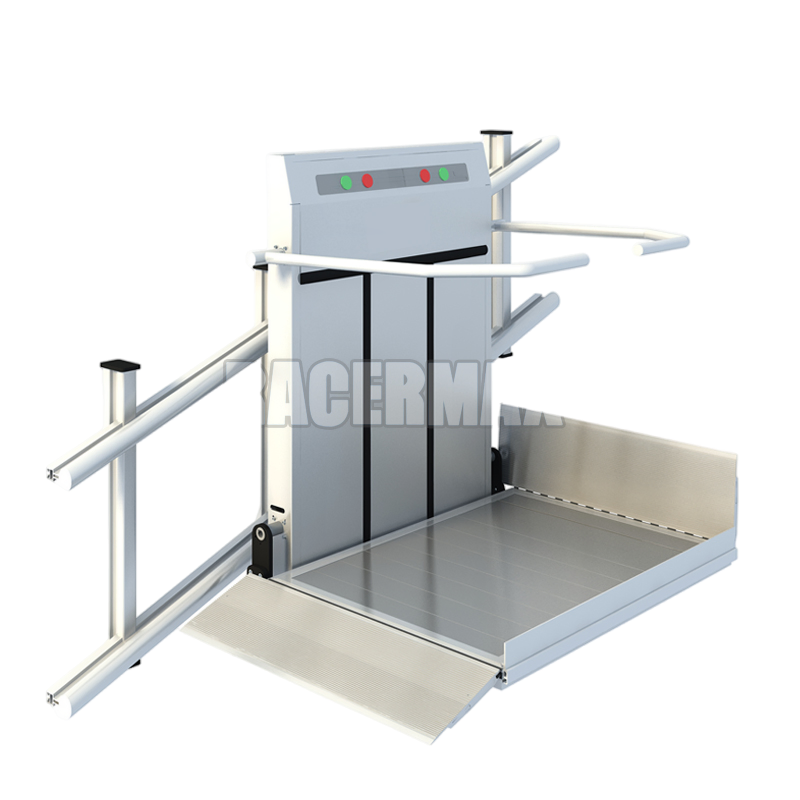

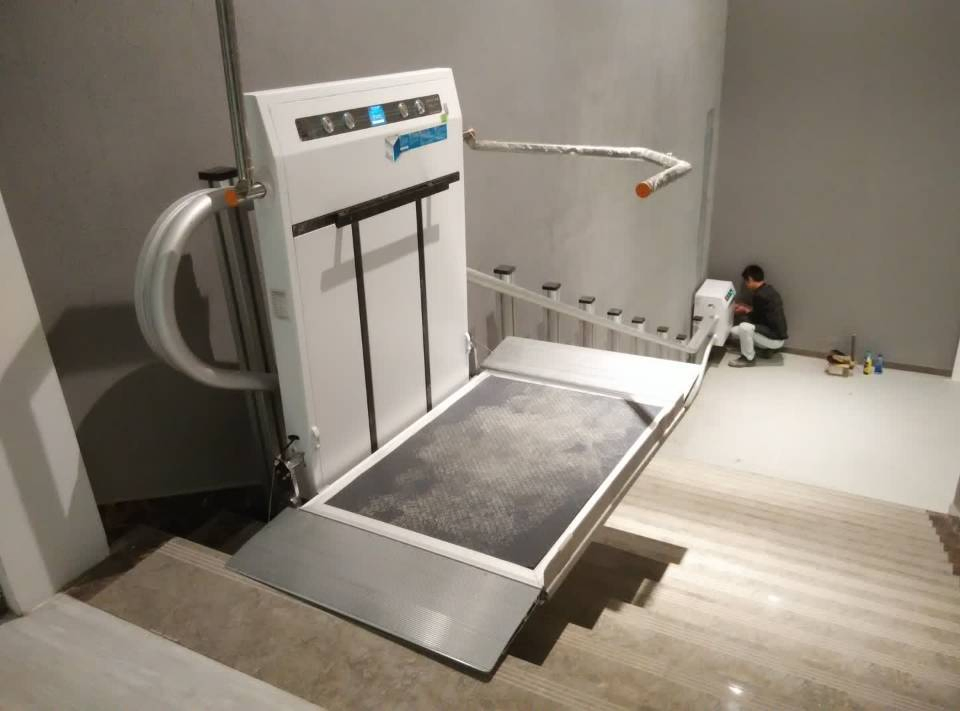

Product Gallery

?

Frequently Asked Questions

What is an accessible lift platform?

An accessible lift platform is a hydraulic or electric device used for the vertical transportation of people (especially those with mobility impairments or the elderly) or goods. It eliminates the need for a deep pit like traditional elevators, making installation more flexible.

Do your lift platforms meet international safety and quality standards?

Absolutely. Our products strictly adhere to or exceed major international standards, such as the EU's Machinery Directive (MD), Lift Directive, and ISO standards. All core components are sourced from internationally renowned brands and have CE certifications.

Is the installation process complicated?

Our lifting platforms are designed for ease of installation and minimal damage to the building structure. Most models do not require a deep pit or a separate machine room. Installation time is relatively short.

How is after-sales service and support guaranteed?

We provide comprehensive global after-sales service including remote technical support with multilingual manuals, a stable supply of original spare parts via international logistics, and a localized service network in multiple regions.

How can I get a quote and delivery date?

You can contact our sales team directly. To provide an accurate quote, please prepare photos or drawings of the installation location, required lift height, load capacity, and platform dimensions.

What are the main power requirements?

The standard equipment uses a 220V/50Hz power input. It also includes a 24V battery backup system to ensure the device remains functional even during external power interruptions.
