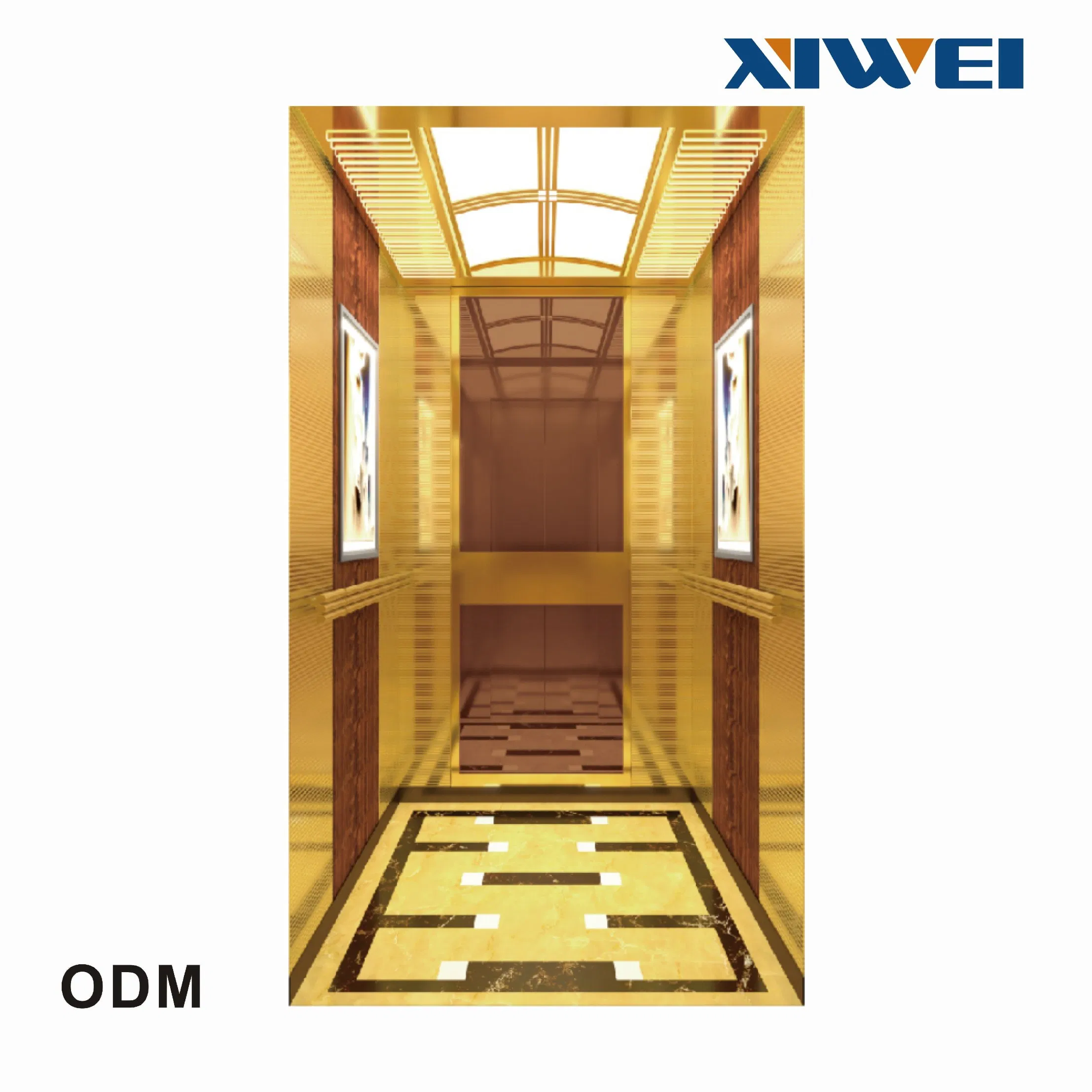

Elegant Stainless Steel Door Panel Shipping Stair Lift Elevator

Customization: Available
After-sales Service: One-Year Free Warranty
Warranty: One Year

Product Description

Basic Specifications

Model:
Passenger Elevator-XW-K033
Driving Type:
AC Elevator
Capacity:
500-1000kg
Persons:
6 - 10
Speed:
2.00 - 3.50m/s
Control Mode:
Collective Selective Control
Computer Room:
Machine Roomless (MRL)
Door Type:
Center Opening Door
Production:
10000 Units / Year
Shaft Type:
Concrete or Steel Structure

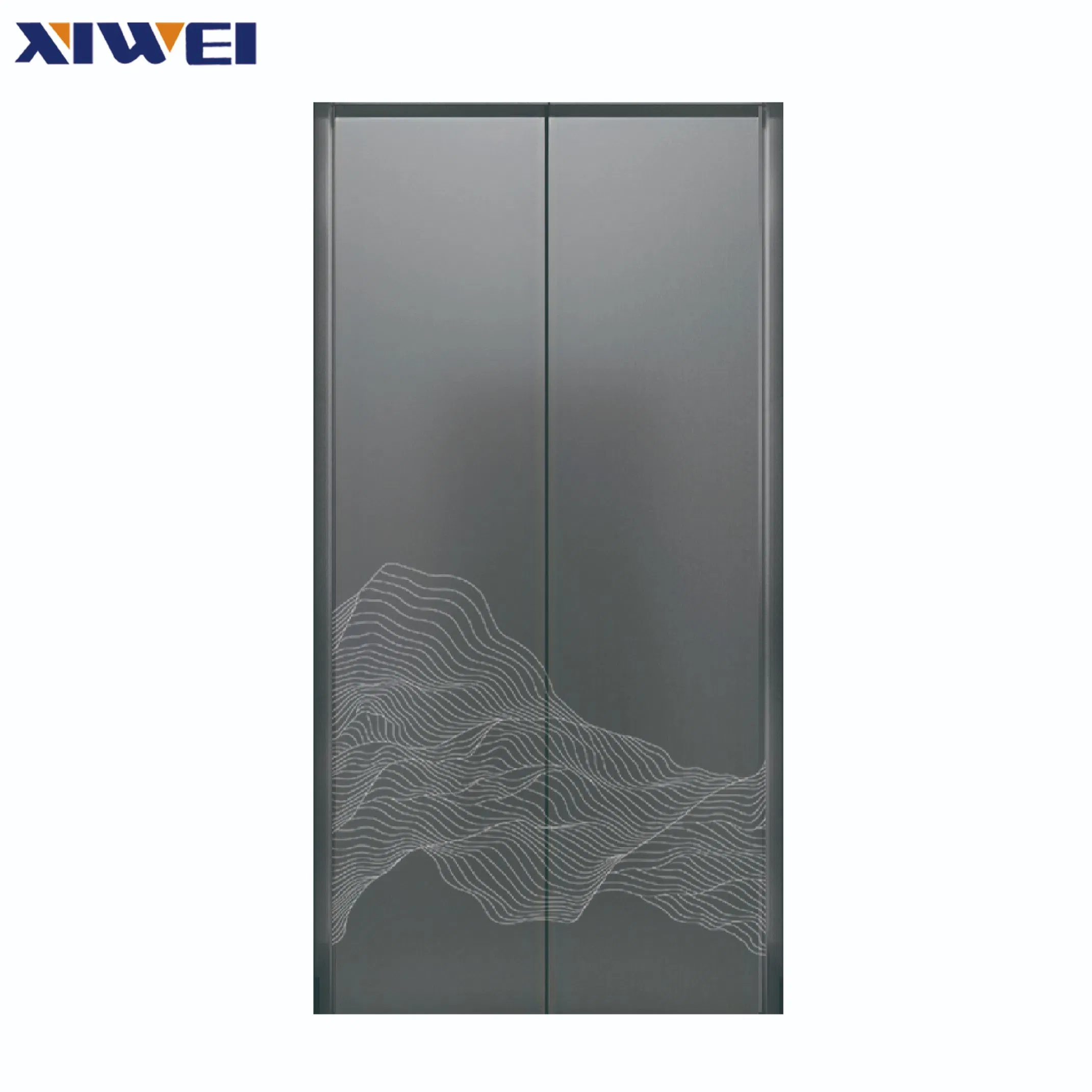

Door Panel:
Painted, Stainless Steel
Origin:
China

Product Description

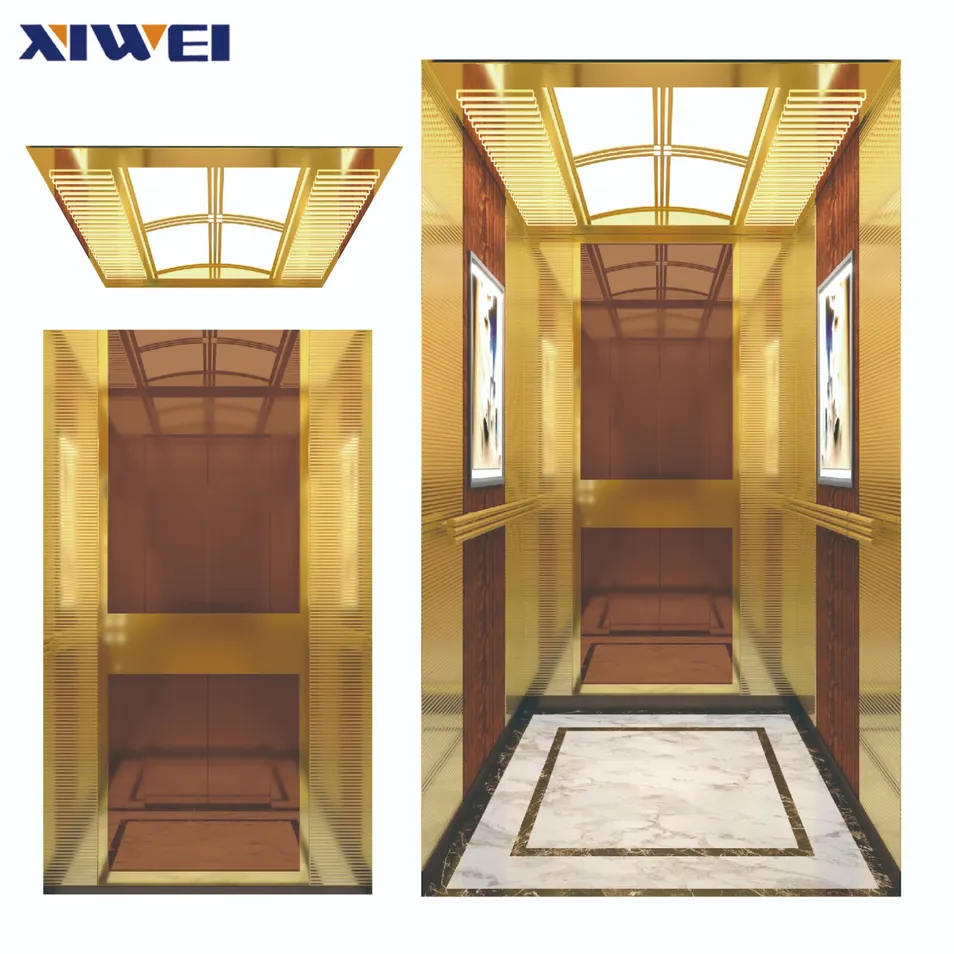

Elevator Design

XW-K033 Series

  • Split Ceiling: Hairline stainless steel + acrylic plate + energy saving light
  • Car Wall: Hairline stainless steel + rear-wall center mirror etched
  • Front Wall & Door: High-grade hairline stainless steel

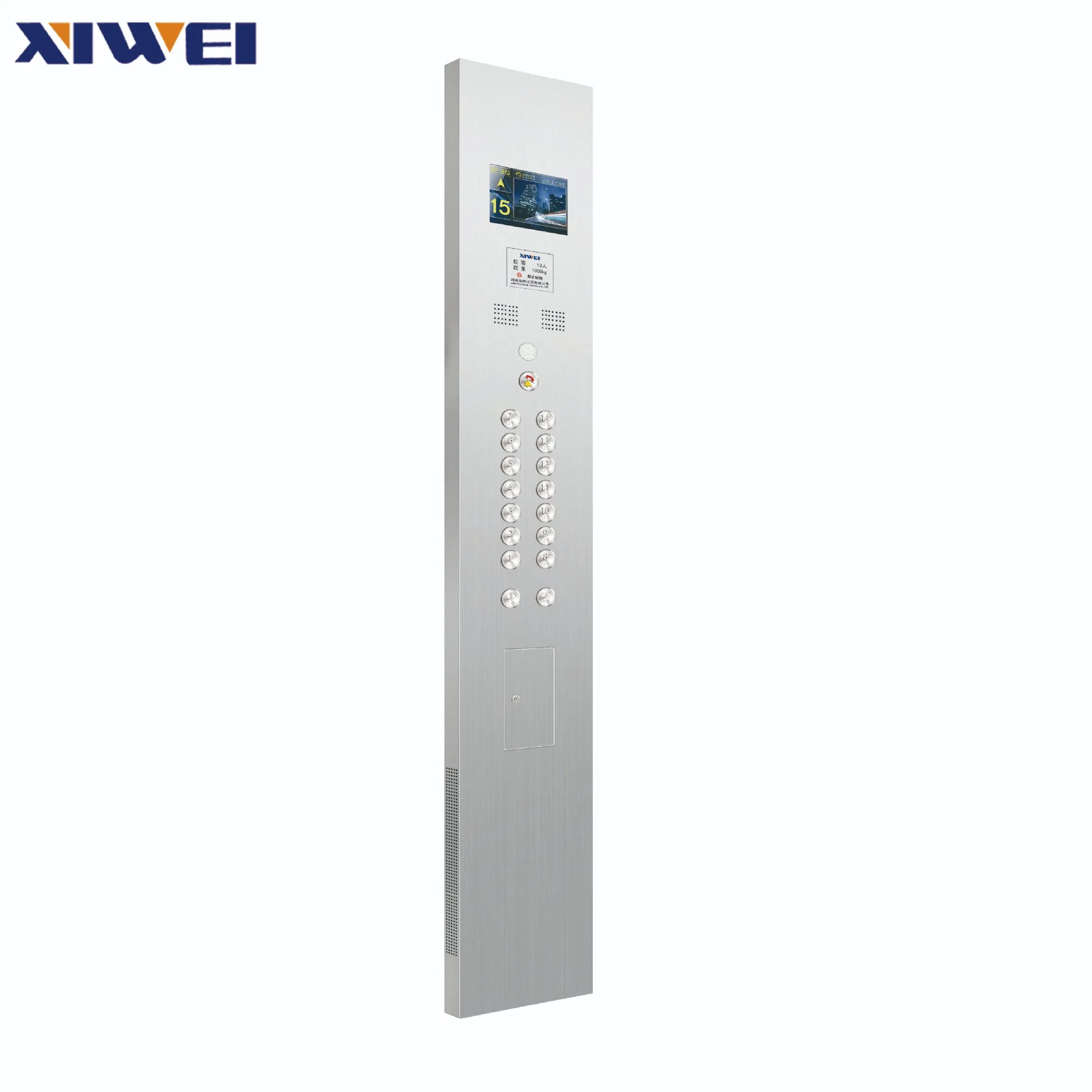

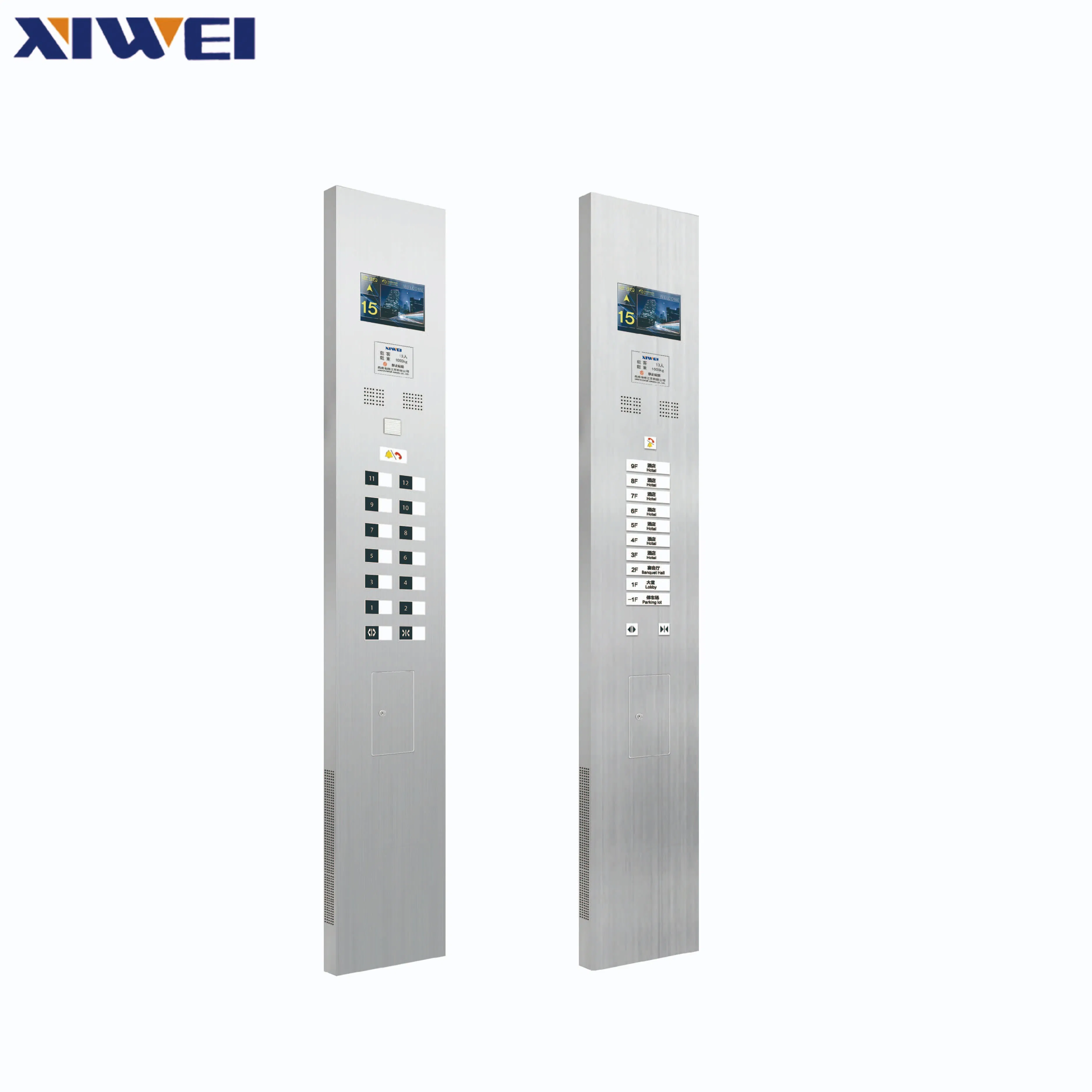

  • Operation Panel: Integrated hairline stainless steel control
  • Handrail: Stainless steel round handrail on the rear wall
  • Floor: Full body brick or durable PVC options

Applications: Designed with modern technology and fashion art, these passenger lifts satisfy requirements for hotels, office buildings, shopping malls, and residential projects, providing a safe and comfortable riding experience.

Technical Specification

Rated Load (kg) Speed (m/s) Car Size (CWxCD) Door Size (DWxPH) Hoistway (HWxHD) Pit Depth (PD) Overhead (OH)
450 1.0 - 1.75 1100 x 1150 700 x 2100 1850 x 1600 1500 - 1700 4700 - 4900
630 1.0 - 1.75 1200 x 1300 800 x 2100 2000 x 1750 1500 - 1700 4700 - 4900
800 1.0 - 2.5 1400 x 1400 800 x 2100 2100 x 1800 1500 - 2100 4700 - 5300
1000 1.0 - 2.5 1600 x 1500 900 x 2100 2300 x 1900 1500 - 2100 4700 - 5300

Packing & Delivery

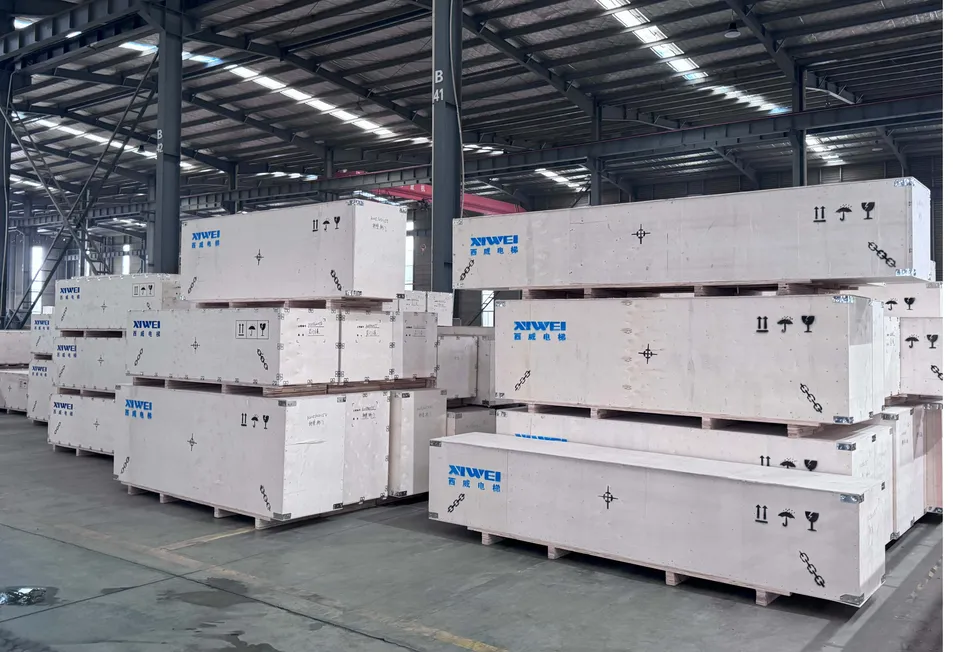

Shipping Info

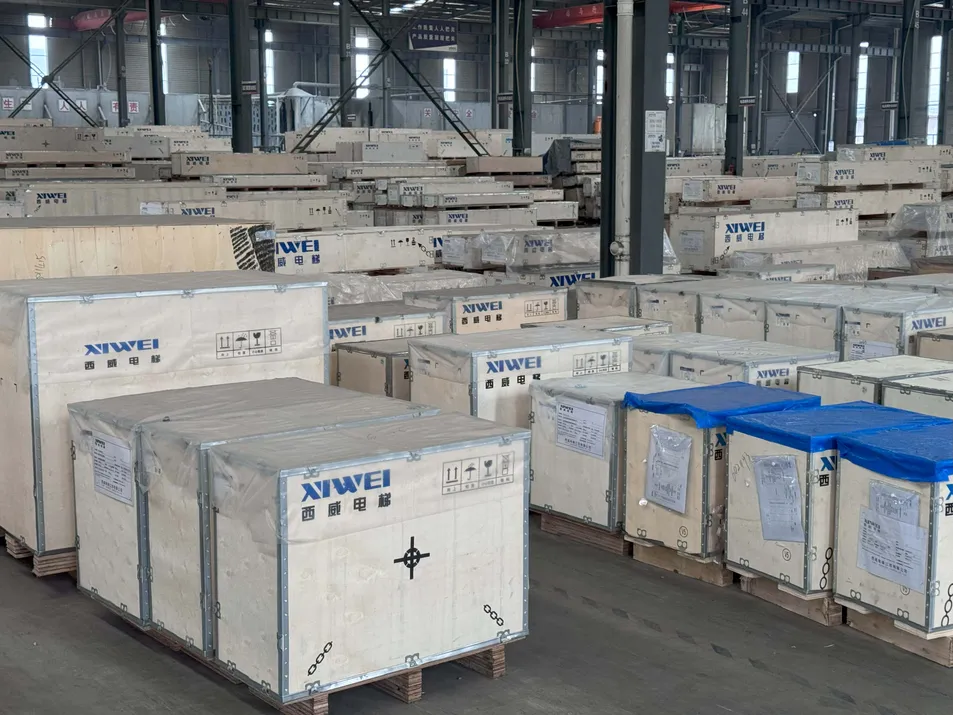

Packing 1

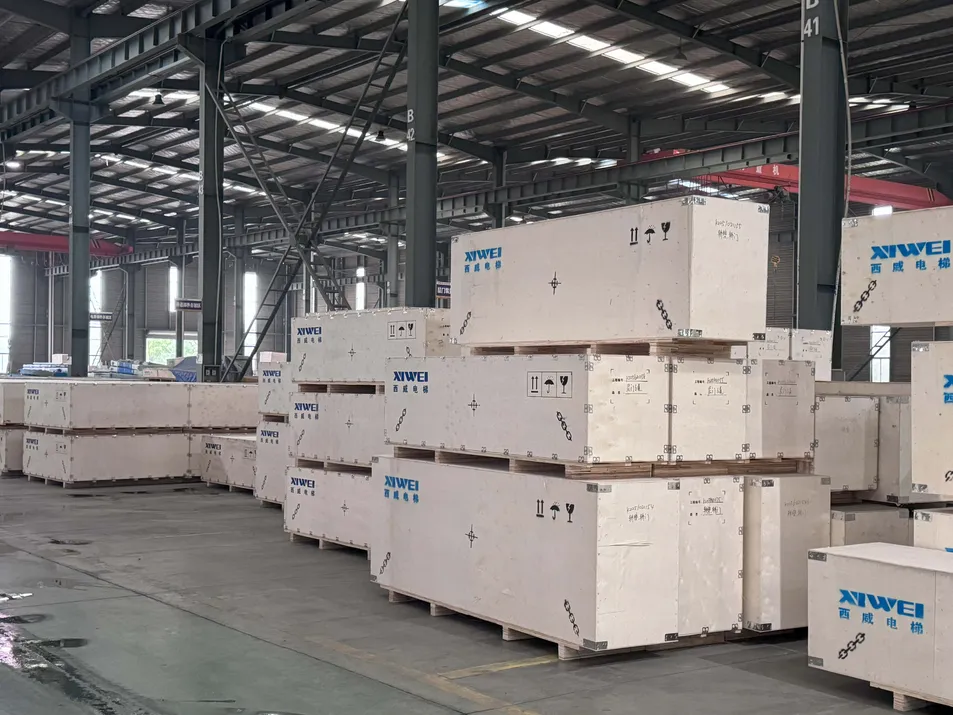

Packing 2

Estimated Shipping Times:

• DHL/UPS/TNT: 3-7 Working Days • FedEx: 7-9 Working Days • Sea Freight: Depending on destination port

Quality Certifications

Certification Documents

Factory Workshop & Systems

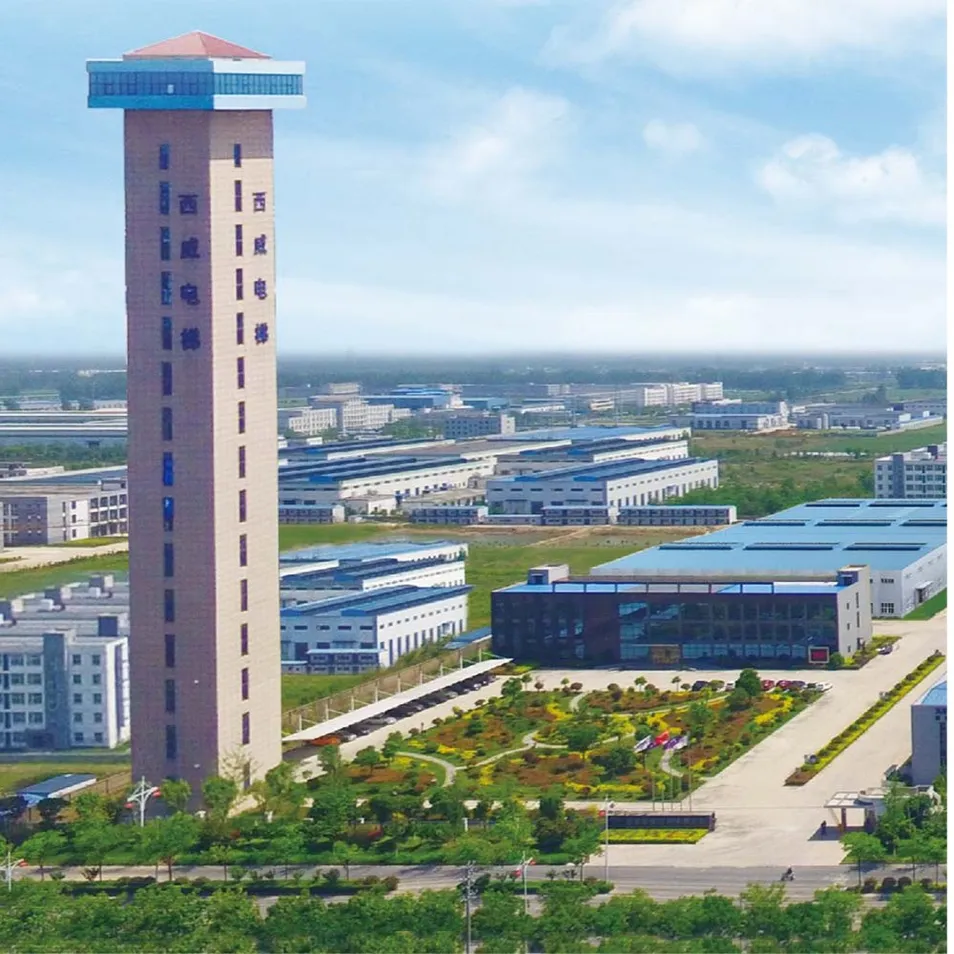

Factory Overview

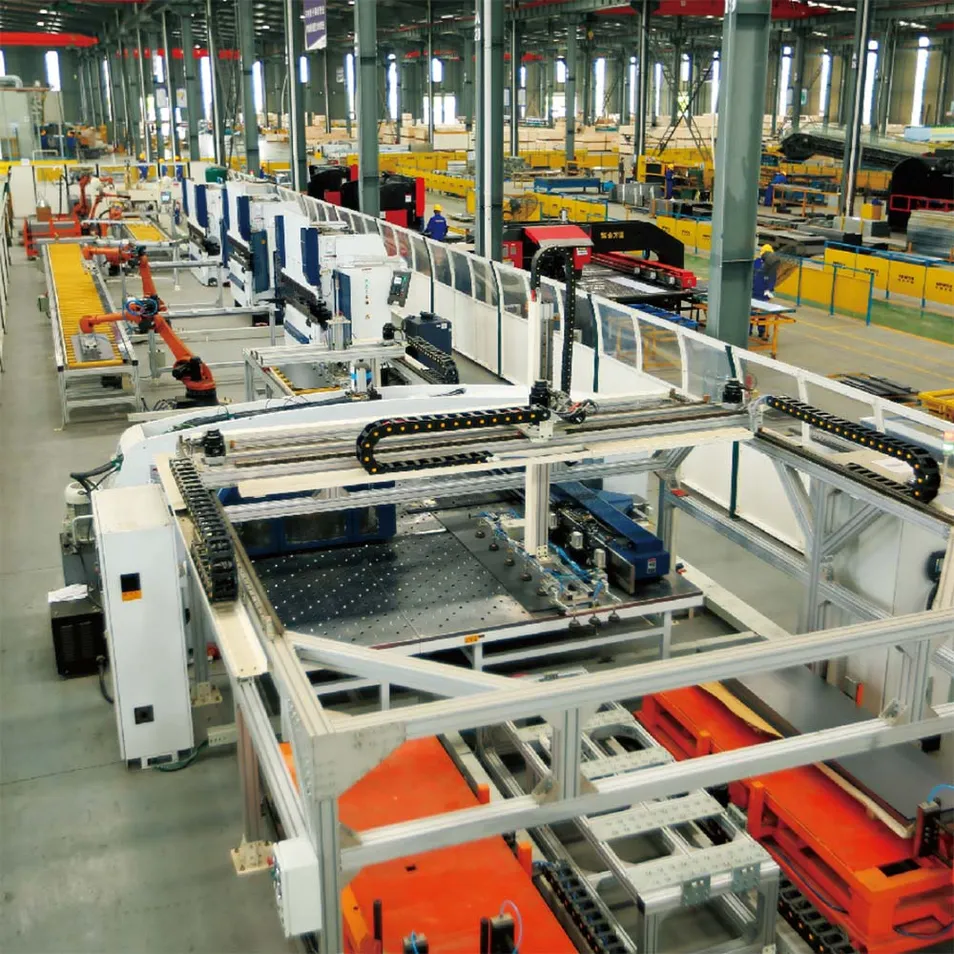

Workshop 1

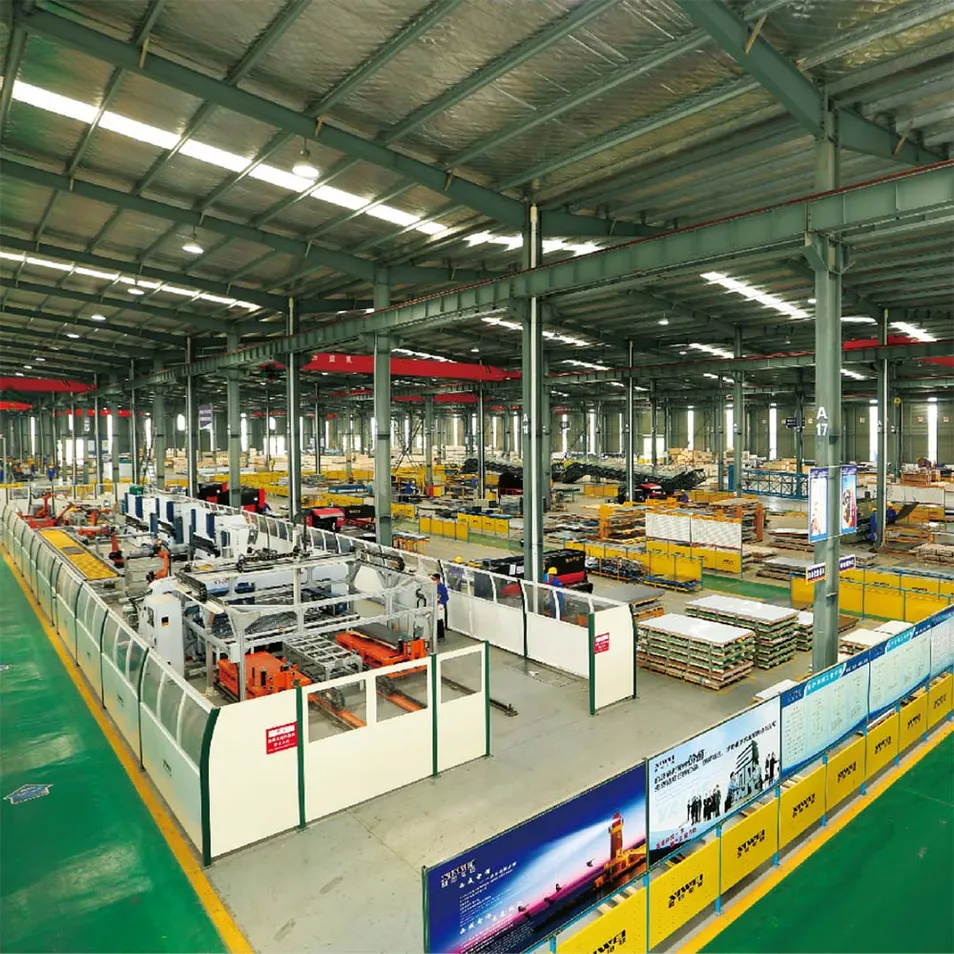

Workshop 2

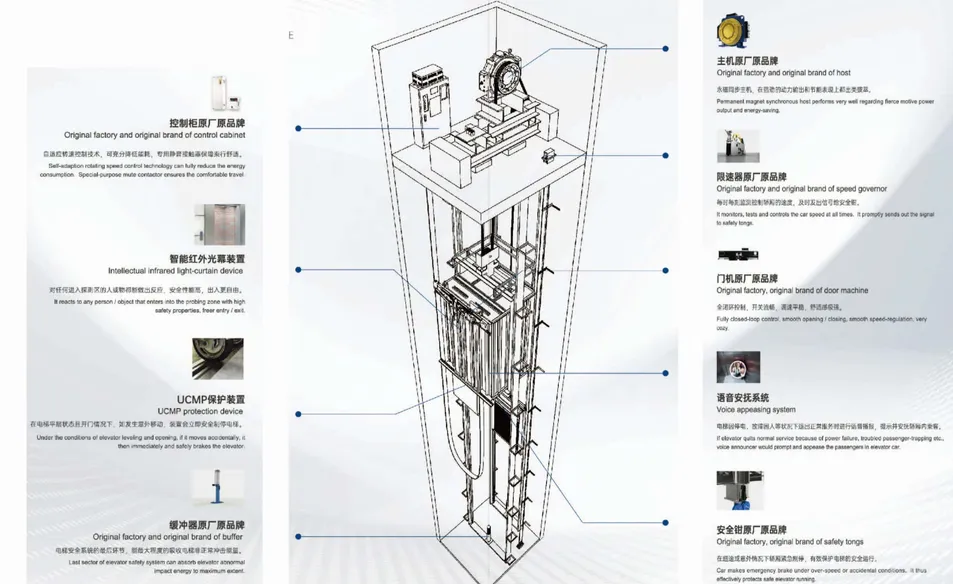

System Diagram 1

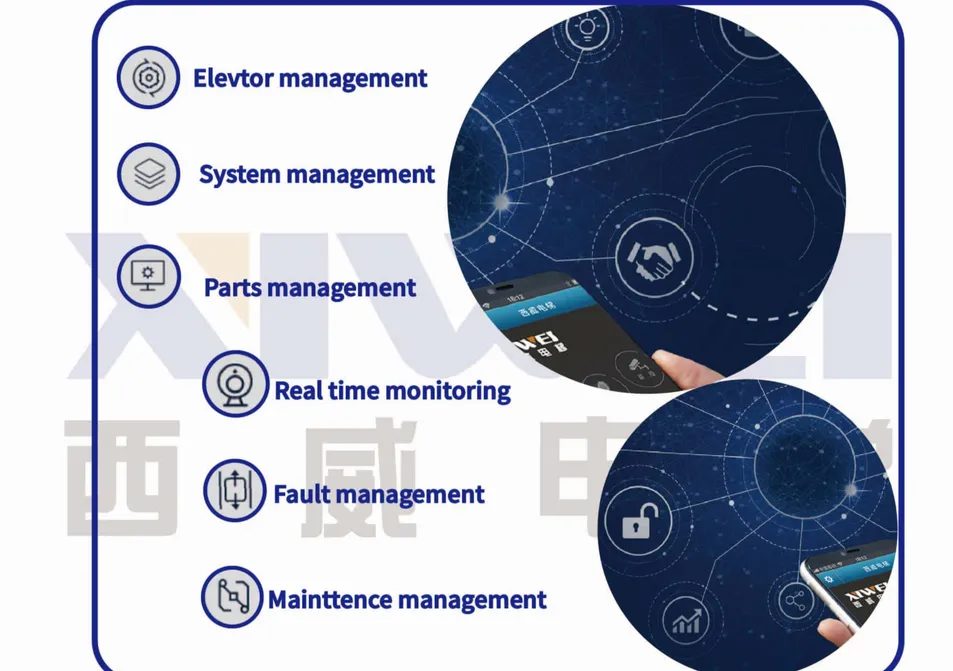

System Diagram 2
Elevator IoT Function

Frequently Asked Questions

Q: Are the elevator wire ropes durable?
A: Yes. Configuration is calculated based on rated load and traction size. The tensile strength of the wire rope is significantly greater than the weight of the lift, and multiple ropes are used for redundant safety.
Q: Is it dangerous if power fails suddenly during operation?
A: No. The elevator will automatically stop due to electrical and mechanical safety devices. Brakes are automatically engaged during power loss.
Q: Is there a risk of injury from doors closing suddenly?
A: Elevators are equipped with anti-clamping switches. If a person or object is sensed, the doors will automatically restart and reopen.
Q: What is the warranty period for exported elevators?
A: The overall warranty is 1 year. Core components like traction machines and control cabinets are covered by an extended 5-year warranty against manufacturing defects.
Q: Is escalator installation complicated?
A: We use an integrated structure design to ensure the equipment is precise and efficient, allowing for easier and more convenient commissioning at the site.
Q: What certifications do your products hold?
A: Our products hold comprehensive international certifications including ISO9001, CE, and CCC compliance.
