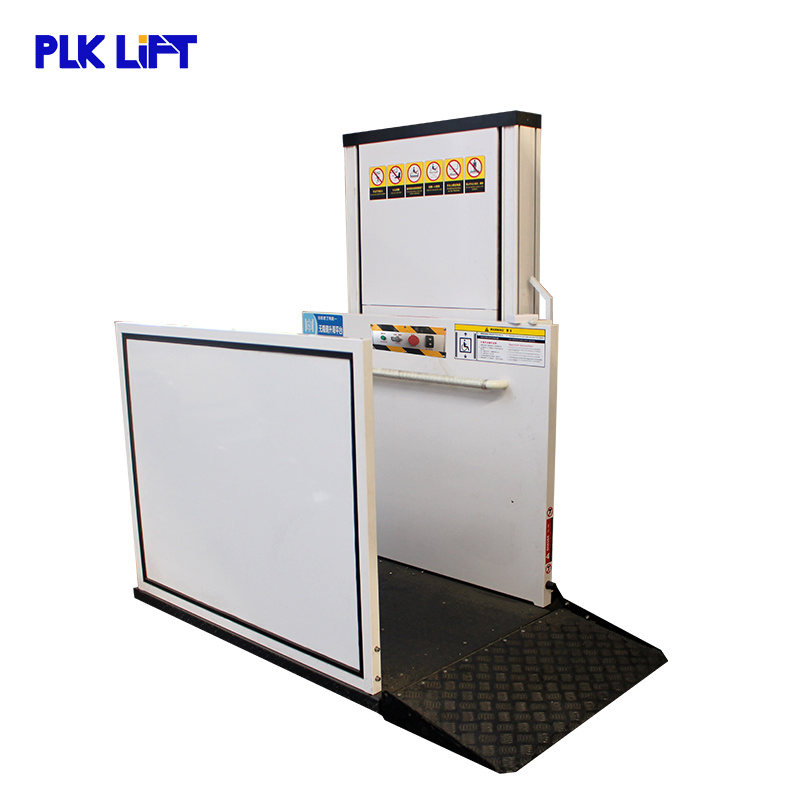

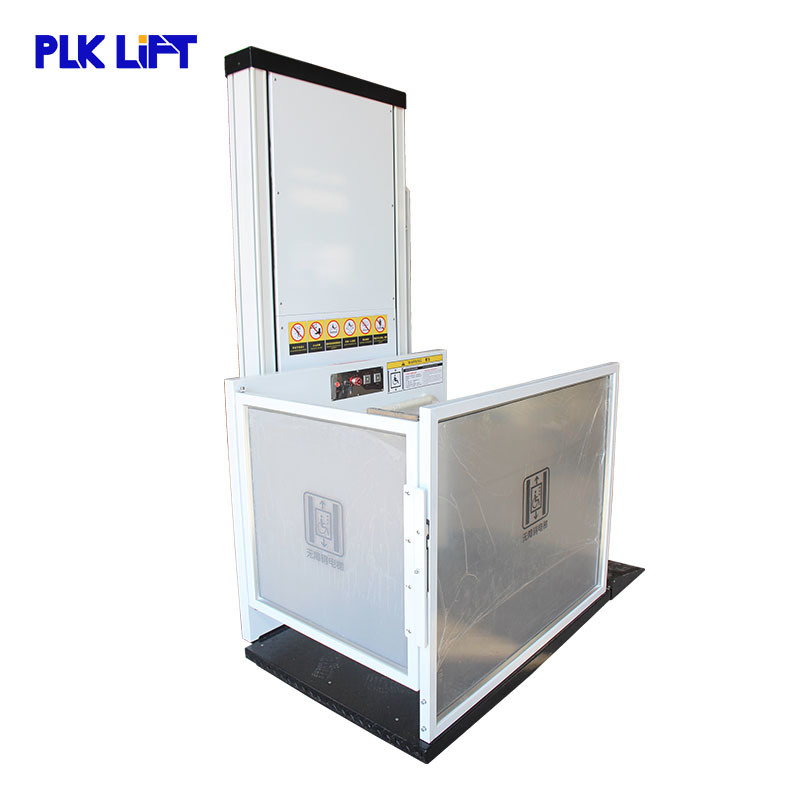

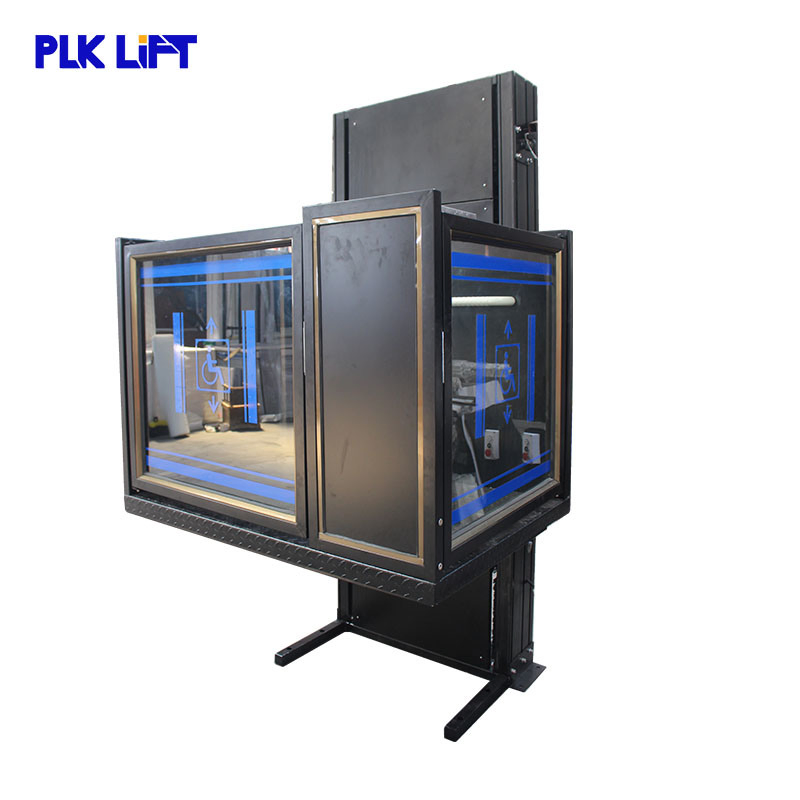

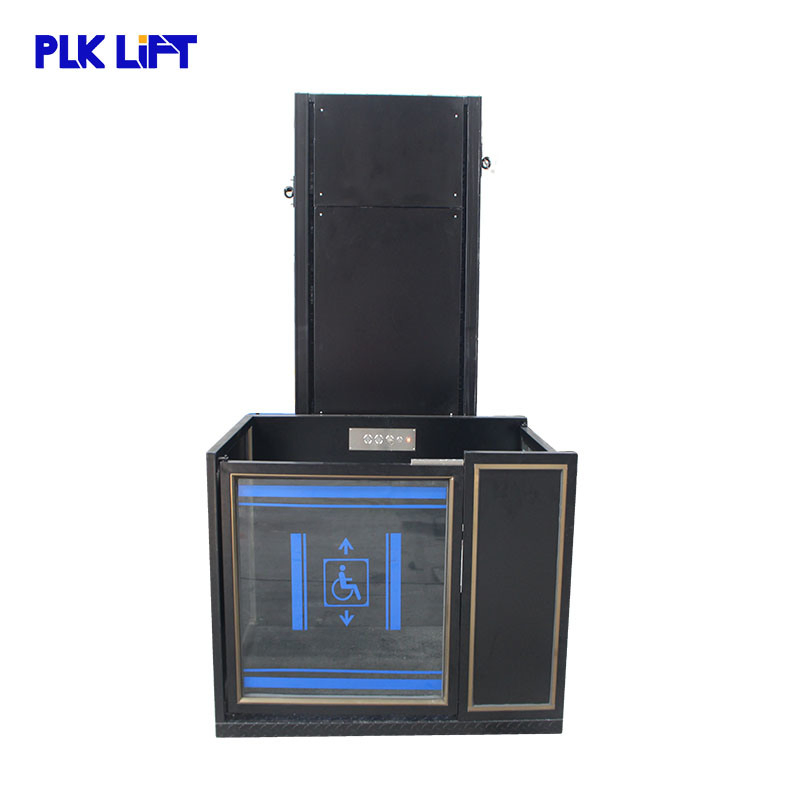

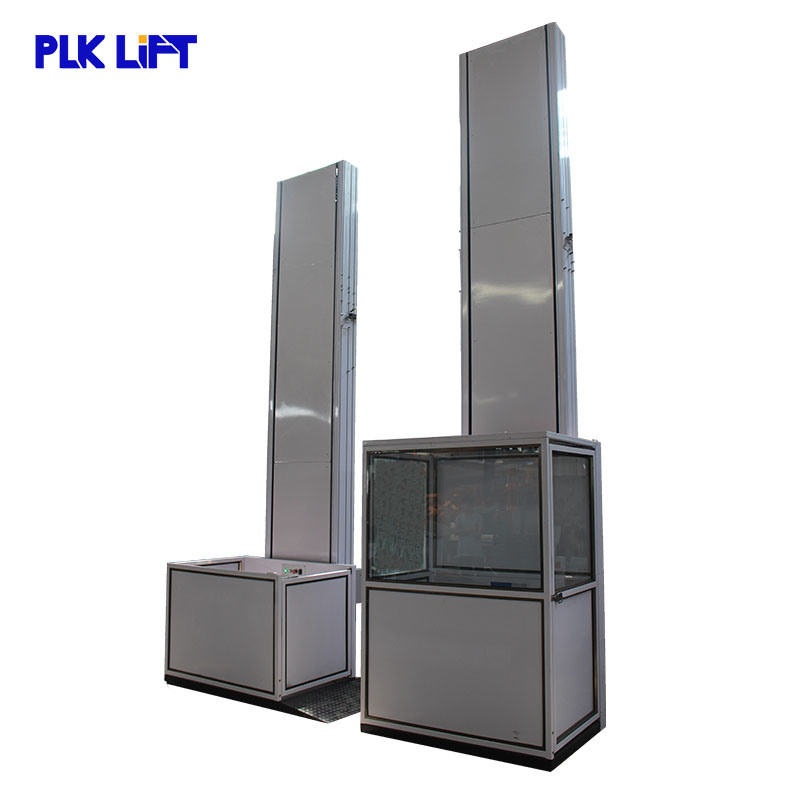

1~10m Electric Vertical Stair Platform Wheelchair Home Lift

1 / 5

1~10m Electric Vertical Stair Platform Wheelchair Home Lift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Electric Platform Wheelchair Lift

Wheelchair lift is specially designed for disabled and elderly people, ensuring extreme stability and safety. Made of high-end aluminum, it features superior craftsmanship compared to traditional welded iron materials. It is easy to disassemble and assemble, providing a professional finish for home or commercial use.

Model: WL Series

Application: Wheelchair Elevator

Mechanism: Lift Chain / Hydraulic

Capacity: 250kg

Lifting Height: 1m - 10m

Material: Aluminum Alloy

Power: 2.2kw

Certification: GS, CE, RoHS, ISO 9001

Technical Specifications

Model Type	WL2510	WL2515	AWL2520	WL2525	WL2530	WL2535	WL2540	WL2550	WL2560
Max. Platform Height	1000mm	1500mm	2000mm	2500mm	3000mm	3500mm	4000mm	5000mm	6000mm
Load Capacity	250kg	250kg	250kg	250kg	250kg	250kg	250kg	250kg	250kg
N.W/G.W (kg)	350/450	450/550	550/700	700/850	780/900	850/1000	880/1050	1000/1200	1100/1300
Platform Size	1430*1000mm skid proof checkered steel
Speed	0.06~0.1m/s
Drive System	Hydraulic pump station and electric motor
Working Condition	Indoors and outdoors (-20° to 70°C)
Installation	No pit required. <3m direct floor install; >3m floor and wall mounting.

Core Features & Advantages

✓

Premium Material: Aluminum Alloy construction with excellent anti-corrosion properties.

✓

Stability: High-quality pump station ensures smooth lifting and lowering.

✓

Safety Sensors: Automatic bottom sensor stops movement if an obstacle is detected.

✓

Electromagnetic Lock: Operates during travel to guarantee absolute passenger safety.

✓

Overload Protection: Built-in pressure relief valve prevents unsafe weight operation.

✓

International Standards: Fully compliant with ANSI/ASME and EN1570 standards.

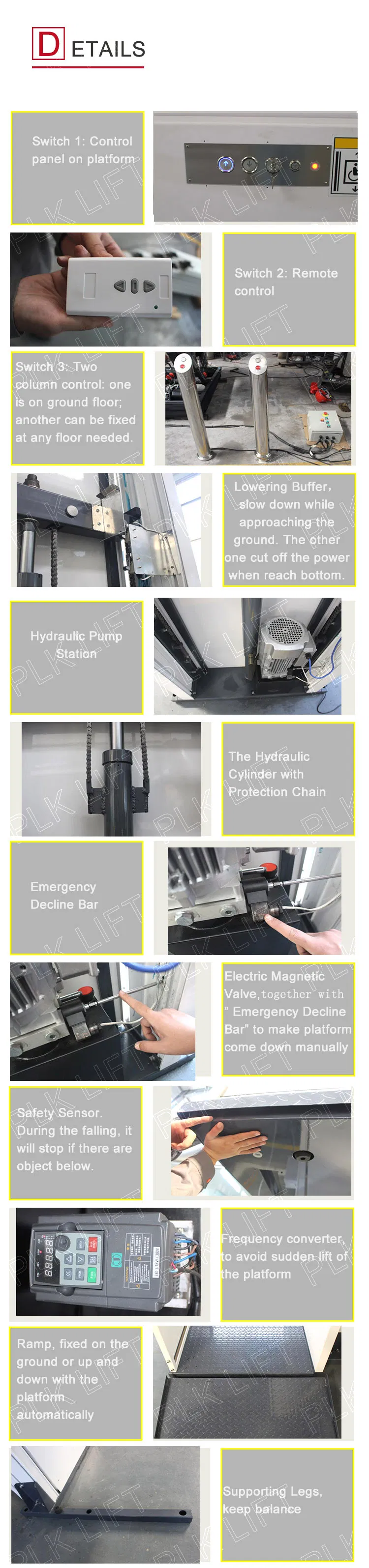

Product Presentation

Frequently Asked Questions

What is the maximum weight the lift can carry?

The standard rated load capacity is 250kg, which is ideal for a wheelchair user and an assistant.

Can the lift be installed outdoors?

Yes, the wheelchair lift is designed for both indoor and outdoor use, with a working temperature range of -20°C to 70°C and plastic spraying surface treatment for weather resistance.

Is a pit required for installation?

No pit is required. The lift can be installed directly on the floor. For heights under 3m, it is fixed to the floor; for over 3m, it is secured to both the floor and the wall.

What safety features are included?

The lift includes an automatic safety sensor at the bottom, electromagnetic locks, a pressure relief valve for overload, and an emergency check valve in case of hydraulic hose failure.

Can the platform size be customized?

While the standard size is 1430*1000mm, customization is possible to meet specific site requirements.

How is the lift controlled?

It features three control methods: a control panel on the platform, column switches for the ground/upper floors, and a remote control that works within a 20m range.
